Different types of table laboratoy presses are available (we only offer table machines):
Dimensions of the pressing plates of our table power presses are 7 ..7/8.. x.. 7..7/8
inches as usable working surface
Maximum pressure force 20 tons;
Maximum temperature each platen 570°F
Manual cooling, cooling channels directly located under the surface of the pressing platens; Maximum deviation of parallelity of the two platens when closed : + - 0,003937 inch
Heatup rate approximately: 50°F/min.
Piston stroke: 5.9 inches
Maximum opening of the two pressing platens: 5,7 inches
Temperature accuracy: + - 34°C
Dimensions of the machine:approximately: length: 3ft; width: 1 1/2ft; hight: 2 3/4ft;
Cooling without opening of the pressing platensALL MACHINES ARE EQUIPPED WITH A SAFETY COVERHOOD ABOVE THE FOUR COLUMN UNIT
Laboratory press (Table machine)
Regulary carried out with electronic pressure
switching device able to controll 4 temp. steps.
Regular: Guide boxes for the pressing table
Laboratory press (Table machine)
with manual pump for rising the pressure manually,
Timer, digital pressuredisplay
Laboratory press (Table machine)
for vulcanization with an optical indcation for
showing the end of a cyclus
Clock for starting the machine and timer
for setting of different pressing periods.
Laboratory press (Table machine)
including two pressure switching devices for
and additionally
Timer for setting of different pressing periods

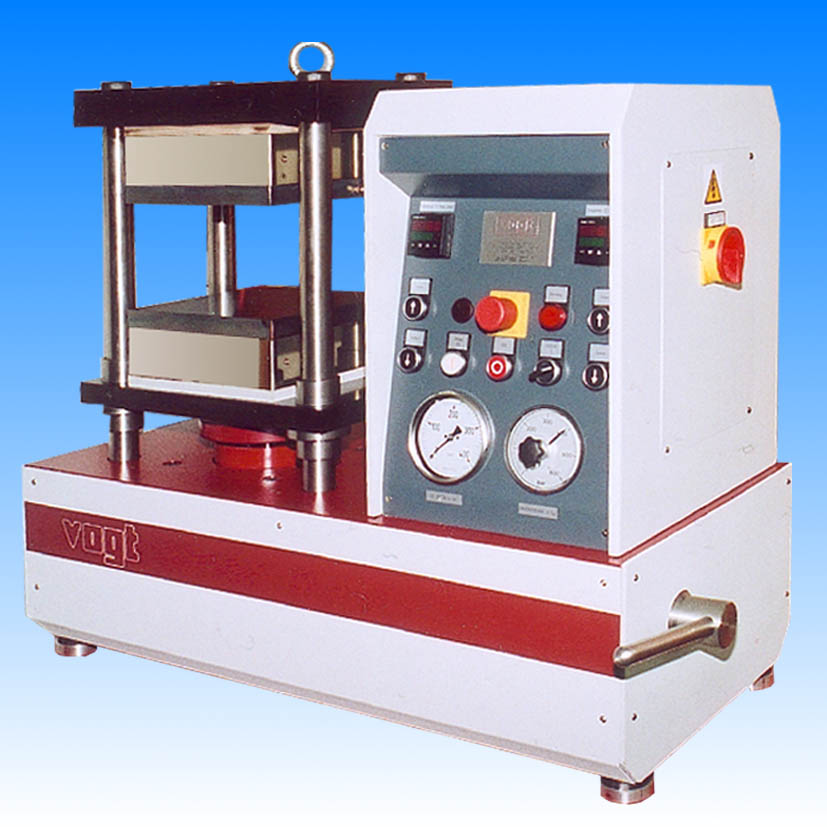

Laboratory press (Table machine)
including a hand pump and manometer.
temperature of
750°F ( 400°C)

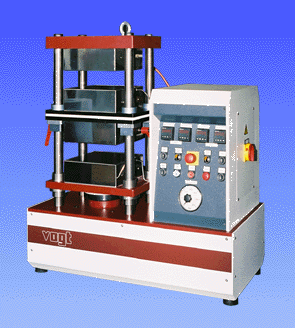

- Laboratory press (Table machine)
with two levels:
Upper level: Heating and Cooling possible
Example as shown: Both levels for heating
Laboratory press (Table machine)
(With a cover hood above the complete
four column-pressing unit)
Safety-grit within each of the windows
Front ist intentionally left open
All our new machines of this type are normally
up to now carried out according to this design.
